Solar Radiant Floor Heating




Solar Thermal technology is the most economical way to heat your water for a range of purposes: Save Money Buy Using Thermal Power To Heat Your Home


Domestic hot water
– Solar can produce enough energy to meet 70-80% of your energy needs for domestic hot water production.

Space heating
– Solar can be used in conjunction with a radiant floor heating system to provide space heating for a building. Solar-heated water runs through pipes underneath the floor boards, which then radiate heat upwards to warm the room.

Solar Pool Heating
– Solar offers the most cost-effective method of pool heating, and allows you to extend your swimming season by several months.

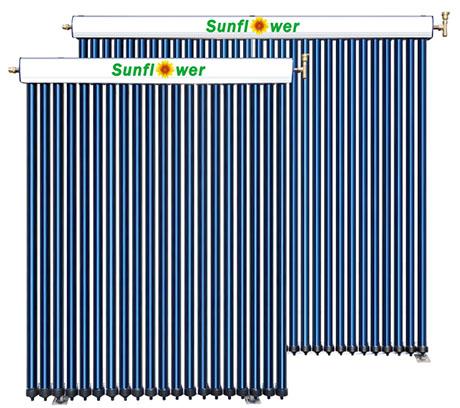

Solar Collector Specification*





Specification

Solar collector
(SFB205818)

Solar collector
(SFB305818)

Number of tubes 20 30
Manifold Alumimum Aluminum
Heating type Copper Heat Pipe Copper Heat Pipe
Lenth of Tube 1800mm 1800mm
OD of tube 58 mm 58mm
ID of tube 50 mm 50mm
Glass Thickness 1.6 mm 1.6mm
Water Capacity 1.8 L (.4gallons) 2.6 L (.6 gallons)
Weight dry 198lbs 220 lbs
Weigh Wet 180 lbs 230 lbs
Max BTU/HR 5000 per hr 7,510 per hr
Pressure 116 psi 116 psi
Glass MaVacuumterial Borosilicate glass Borosilicate glass
Vacuum P<5x10 -3 PA P<5x10 -3 PA
Frame Included Included


Learn More about Solar Collector details >
