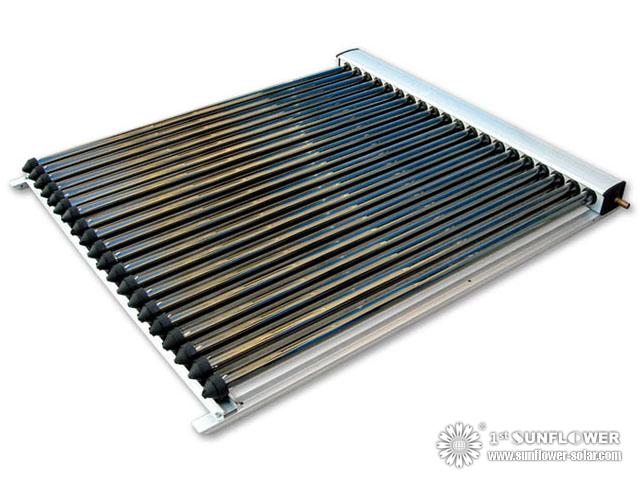

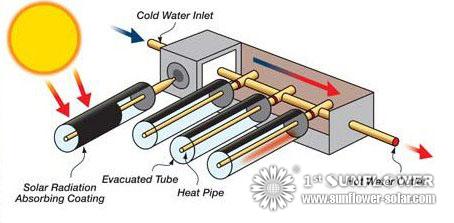

"This kind of products use All-glass Evacuated Tubular Solar Collector Tube with Heat Pipe as its heat-absorb element. So it can be connected to the pressurized system.

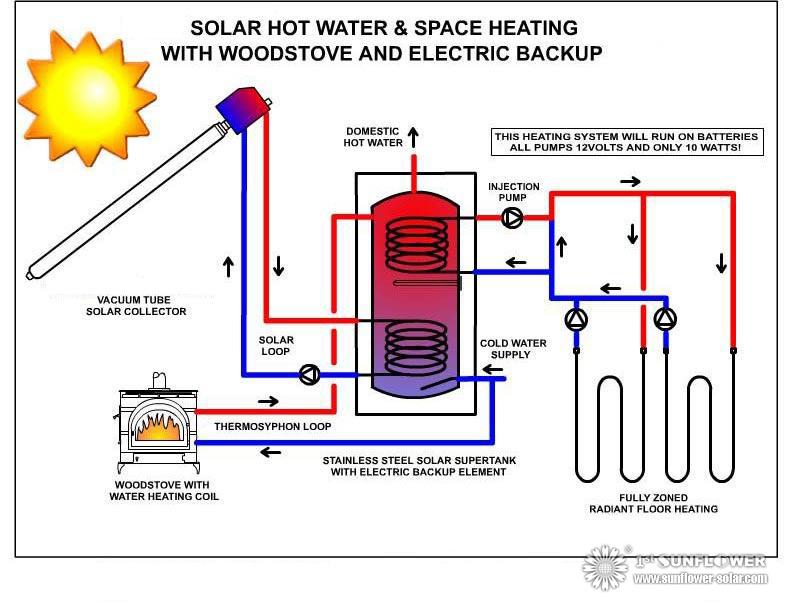

These top-of-the-range solar panel heat collectors are suitable for heating domestic hot water, swimming pools etc - even in winter! One unit is adequate for an average household (3-4people), and it is modular, so you can add more if required. A single panel is sufficient for a 200litre cylinder, but you can fit 2 or more for high water usage, or for heating swimming pools or underfloor heating. Some types of renewable energy are only available in certain locations, however free solar heating is potentially available to almost every house in the world! "
Solar Collector Feature:
- Suitable for pressurised systems
- High efficiency solar collector using heat pipe evacuated tubes
- Can be used in all climates
- Reliable and efficient with twin-wall glass solar tubes
- Copper heat pipes for rapid heat transfer
- Easy plug-in installation for mounting on the roof or at ground level
- Maintenance free
- Suitable for high pressure water (up to 8bar / 116psi)
- Corrosion resistant silver brazed copper header
- Frame material: 304 2B grade stainless steel
- Casing material: 304 BA or AB stainless steel
- Glass wool insulation for better heat retention
- Collectors may be connected in series to increase water heating capacity
- Tubes easily replaced if broken
- Ideal for commercial solar water heating applications
- Expected Lifetime >15years
- 'Passive Solar Tracking' - maintains heat output regardless of sun's position in the sky
- BSEN 12975 Approved

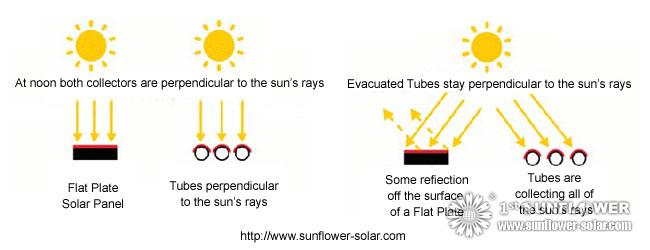

Evacuated tubes stay perpendicular to the sun's rays
Notice :
1) The angle of the frame can be changed in production according to the local latitude condition of the customers. We can design the suitable angle for the customers
2) We offer the spare accerssories and tubes for your order for free
3) We can offer the standing frame for SFB if the customers need
4) We can change the quanity of tubes of each SFB solar collector according to customers' request
5) We can change the different material of manifold according to the requirement of customers

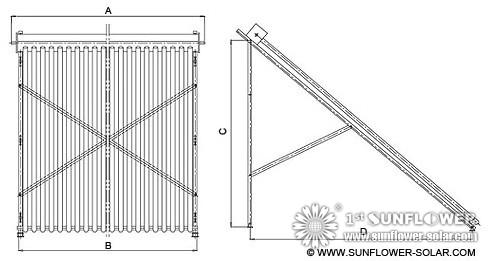

SFB-AL with standingframe.
