| Components | Technical parameters | Remark | |||||||||
| solar panel | silicon | Monocrystalline silicon/Polysilicon | life |
20-25 years |
|||||||
| power | 15W | ||||||||||
| dimension | 530mm*365mm*85mm | ||||||||||
| battery | Rated capacity (20 hour rate) | Maintenance-free lead-acid deep cycle 12AH | life | 3-5years | |||||||
| Rated voltage | 12V | ||||||||||
| dimension | (Total height (include terminals) | ||||||||||
| note | Stocked battery recommended every three months (a maximum of six months), in accordance with recycled charging parameters for charging the battery, otherwise it will affect battery capacity and life. | ||||||||||
| Configuration | controller | Intelligent control of solar panels on the battery charge and discharge, battery over charge and over discharge protection, and solar panels charge the battery while the battery can discharge the load. | |||||||||
| inverter | 300W ,12V DC voltage of the battery is converted to AC110V/AC220V voltage. provide main power to load. | ||||||||||
| charger | Provide the function that main power charge to the battery so that this system in addition to solar panels can charge the battery, the device can also be used by the main power to charge the battery, make up the defects affected by the weather. | ||||||||||
| Interface function | Voltage digital gauges,0-12V adjustable output voltage, LED Bulb DC12V Interface, USB output interface, 5.0 cell phone charging port, vehicle cigarette lighter socket interface, interface can charging main power, AC110V/AC220V U.S. standard interface. | ||||||||||
| light source | LED bulb YG-BB-PC32 2pcs，3m-long leads,E27 switch lampstand | ||||||||||
| Weight | KG | ||||||||||
| Size | 530mm*90mm*385mm | ||||||||||

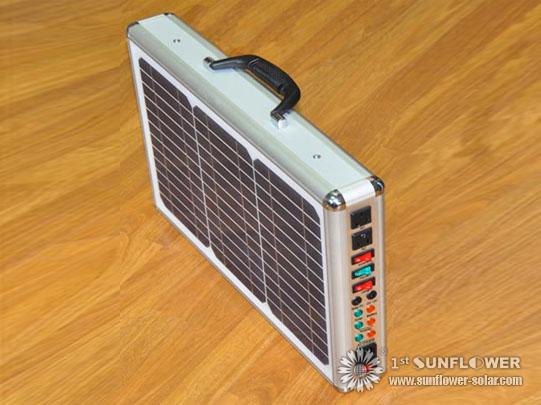

15W Small Portable Solar Generator
15W Small Portable Solar Generator
15W Small Portable Solar Generator
