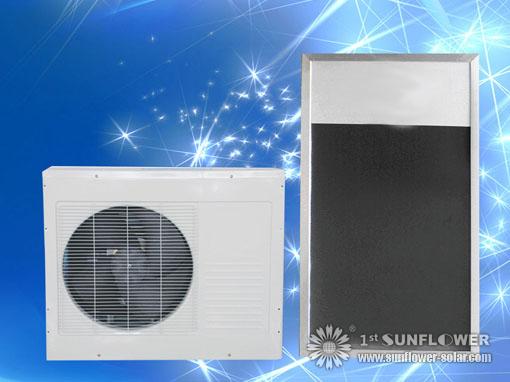

Wall mounted Solar Air Conditioner
  • SFI series
Hybrid solar air-conditioner use solar energy to work which can save electric energy, easy installation and maintenance.
User Guide
Download Center

Why Hybrid solar air-conditioner can save electricity?

Here are the reasons:
Firstly, it absorbs solar energy to heat the inside medium by using a solar collector. Freon from the compressor goes through the copper coil inside the collector and undertakes a heat exchange. Freon exchange heat with the medium inside the solar collector then go through a cycle inside the system for cooling and heating.

Secondly, it adopts a highly efficient heat-exchange system. The use of the internal thread pipe, hydrophilic aluminum fin and the optimal heat exchange system reduce energy loss, improve the overall efficiency and effectively ensure the performance. Therefore, hybrid solar air conditioner is more convenient and energy-saving than regular air conditioner.

Comparing to Current Products
1. Conventional air conditioner consumes too much, users have to pay a heavy electricity bill.
2. Photovoltaic (PV) system costs a large amount of money to build up.
3. Thermally driven absorption cooling is also very costly, and its cooling capacity is not big enough.



Solar Air Conditioner

Tips on electricity saving of air conditioners: According to China National Management Method of Energy Efficiency, EER refers to the proportion between cooling capacity and power input, which is the only data used to value the energy-saving of air conditioners. The bigger it is the electricity it saves. If two AC with the same power consumption, the one with bigger capacity is better on electricity saving.

Performance Characteristics

High efficiently,energy-saving,comfortable and money saving,exceeding national first grade energy standard.
Durable and long-lived,smooth running.Low-loaded operation of the compressor to extend its duration.
Healthy and comfortable,constant temperature and keeping air conditioner disease away.
It is not frequency conversion air conditioner but superior to it because conversion type begins to save energy when the indoor temperature reaches the set value,while the hybrid solar air-conditioner runs in the optimal state immediately after starting and it achieves the sanme effects of traditional air conditioner with less power consumption.
Super luxurious appearance decorates your home.Indoor panel adopts aluminum alloy and wire drawing metal color board to make your house more sparkling.
Automatic open and close dustproof air outlet.
Easy installation,same as the traditional air conditioner.
With strong adaptability,Chuanglan hybrid solar air conditioner can run at super low and high temperature from -7°C to 53°C.
Exceeding the national standards and applicable to all kinds of environment.

High Performance Japanese Brand Compressor

Durable and long-lived, smooth running. Low-loaded operation of the compressor to extend its duration.



Solar Air Conditioner

Four-fold Heat Exchanger
As one of the main components of air conditioner, Chuanglan hybrid solar air conditioner adopts four-fold heat exchanger (take Supreme Silent as an example) heat exchanger effective area is increase by 20-40% than V-shape and flat heat exchangers, thus the cooling and heating effect are improved greatly.

Solar Air Conditioner



High-quality Internal Thread Copper Pipe
Compared with normal copper pipe, the heat exchanging area of internal thread cooper pipe is significantly enlarged so does the exchange effect. Meanwhile, it can resist frosting and increase its starting ability at low temperature.

Hydrophilic aluminum foil to prevent the appearing of water bridge, thus to ensure the performance of heat exchange.







Model No. TKF(R)-26GW TKF(R)-32GW TKF(R)-35GW TKF(R)-60GW TKF(R)-72GW
Power Supply:220-240VAC, 1PH, 50/60Hz
Performance
Capacity Cooling Btu/h 9000 11500 12000 20000 24000
W 2600 3200 3500 6000 7200
Heating Btu/h 10000 12000 13000 22000+1700 27000+1700
W 2900 3500 3800 6600+500 7900+500
Noise Indoor dB(A) ≤40 ≤42 ≤42 ≤46 ≤50
Outdoor dB(A) ≤50 ≤50 ≤52 ≤56 ≤58
Air Circulation m³/h 450 520 550 850 1050
Suitable Area 11~17 13~21 15~23 25~42 30~48
EER W/W 3.64 3.72 3.89 3.88 3.82
Btu/h/w 12.42 12.69 13.27 13.24 13.03
Power Consumption
Power Input Cooling W 650~770 780~940 800~1025 1350~1560 1700~1900
Heating W 650~780 780~950 800~1050 1350~1590+500 1700~1950+500
Rated Current Cooling A 2.95~3.50 3.55~4.27 3.64~4.66 6.14~7.09 7.73~8.64
Heating A 2.95~3.55 3.55~4.31 3.64~4.77 6.14~7.23+2.2 7.73~8.66+2.2
Vacuum Tube Diameter*Length*Pcs 47mm*500mm*9 47mm*500mm*10 47mm*500mm*10 47mm*620mm*11 47mm*620mm*11
Dimensions
Indoor Unit Net mm 700*230*160 785*285*210 785*285*210 985*320*215 985*325*230
Shipping mm 822*315*250 910*370*300 910*370*300 1070*370*260 1070*370*260
Outdoor Unit Net mm 610*260*520 790*260*540 790*260*540 850*300*755 940*300*755
Shipping mm 670*360*600 910*370*610 910*370*610 950*400*770 990*400*770
Water Tank Shipping mm 840*400*330 910*400*330 910*400*330 980*400*370 980*400*370
Vacuum Tube Shipping mm
Weight
Indoor Unit Net/Gross kg 8/10 10.5/13 10.5/13 17/18.5 21/23
Outdoor Unit Net/Gross kg 27/32 38/40 38/40 50/52 55/58
Solar Collector Net/Gross kg 12/13 13/15 13/15 16/17 16/17
Loading Qty in 20feet sets 93 66 66 52 51
40HQ sets 222 162 162 128 125

Unit Conversion

1Ton  (12,000 BTU)
1.5 Ton
(18,000 BTU)
2 Ton
(24,000 BTU)
2.5 Ton
(30,000 BTU)
3 Ton
(36,000 BTU)
3.5 Ton
(42,000 BTU)
4 Ton
(48,000 BTU)
5 Ton
(60,000 BTU)
1Ton=3024 kcal/h = 3.517KW
1Btu/h = 0.293W
