Name

Integrated Working Station

Model

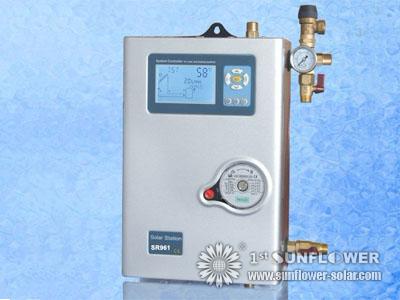

SR961

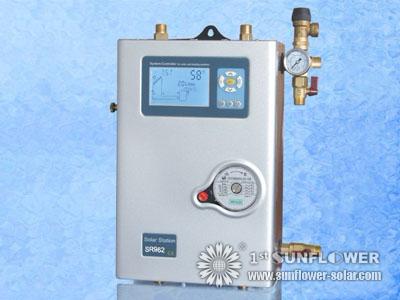

SR962

Power supply

AC230V±10%

AC230V±10%

Power consumption

< 4W

< 4W

Accuracy of temperature measuring

±2°C

±2°C

Range of collector temperature measuring

0～200°C

0～200°C

Range of tank temperature measuring

0～100°C

0～100°C

Suitable power of pump ot valve

4 pcs, ≤ 600W

4 pcs, ≤ 600W

Suitable power of electrical heater

1 pc, ≤ 600W

1 pc, ≤ 600W

Inputs

Total 5 sensor, thereof 3 sensors are

Total 5 sensor, thereof 3 sensors are

standard, 2 sensors are optinal.

standard, 2 sensors are optinal.

1 x Pt1000 sensor (≤500°C) for collector T1

1 x Pt1000 sensor (≤500°C) for collector T1

(silicon cable≤280°C),

(silicon cable≤280oC),

2 x NTC10K, B3950 sensor (≤ 135°C) for

2 x NTC10K, B3950 sensor (≤ 135°C) for

tank, (PVC cable ≤105°C),

tank, (PVC cable ≤105oC),

Optional: 2 x NTC10K, B3950 sensor (≤

Optional: 2 x NTC10K, B3950 sensor (≤

135°C) for tank, (PVC cable ≤105°C),

135°C) for tank, (PVC cable ≤105°C),

Outputs

2 relays, for circulation pumps;

2 relays, for circulation pumps;

1 relay for electrical heater

1 relay for electrical heater

Ambient temperature

-10～50°C

-10～50°C

Water proof grade

IP43

IP43

Size

420 mm×280mm×140mm

420 mm×280mm×140mm

Usage

For SFB (Split pressurized system)

For SFB (Split pressurized system)

RS25/2

1 ″

1 1/2 ″ M

180

97

90

79

33

100

92.5

54

73

2.4

RS30/2

1 _1/4 ″

2 ″ M

180

97

90

79

33

100

92.5

54

73

2.6

RS25/4

1 ″

1 _1/2 ″ M

180

97

90

79

33

100

92.5

54

73

2.4

RS30/4

1 _1/2 ″

2 ″ M

180

97

90

79

33

100

92.5

54

73

2.6

RS25/6

1 ″

1 _1/2 ″ M

180

97

90

79

33

100

92.5

54

73

2.4

RS30/6

1 _1/4 ″

2 ″ M

180

97

90

79

33

100

92.5

54

73

2.6
