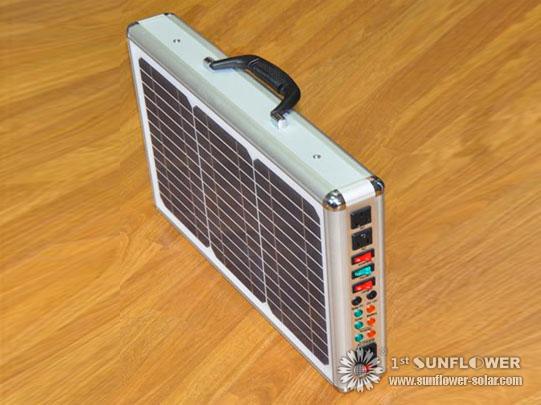

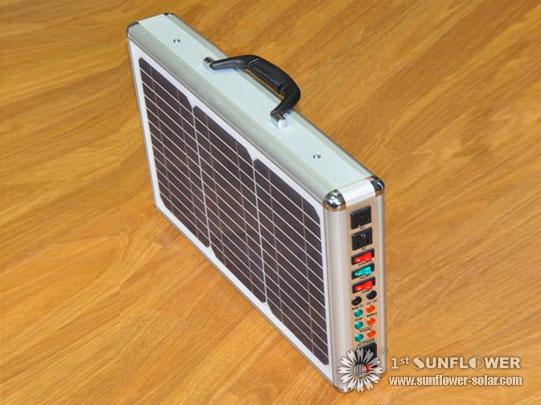

15W Small Portable Solar Generator
15W Small Portable Solar Generator
User Guide
Download Center



Components Technical parameters Remark
 solar panel silicon Monocrystalline silicon/Polysilicon life

20-25

years
power  15W
dimension 530mm*365mm*85mm
battery Rated capacity (20 hour rate) Maintenance-free lead-acid deep cycle 12AH life 3-5years
Rated voltage 12V
dimension (Total height (include terminals)
note Stocked battery recommended every three months (a maximum of six months), in accordance with recycled charging parameters for charging the battery, otherwise it will affect battery capacity and life.
Configuration controller Intelligent control of solar panels on the battery charge and discharge, battery over charge and over discharge protection, and solar panels charge the battery while the battery can discharge the load.
inverter 300W ,12V DC voltage of the battery is converted to AC110V/AC220V voltage. provide main power to load.
charger Provide the function that  main power  charge to the battery so that this system in addition to solar panels can charge the battery, the device can also be used by the main power to charge the battery, make up the defects affected by the weather.
Interface function Voltage digital gauges,0-12V adjustable output voltage, LED Bulb DC12V Interface, USB output interface, 5.0 cell phone charging port, vehicle cigarette lighter socket interface,  interface can charging main power, AC110V/AC220V U.S. standard interface.
light source LED bulb YG-BB-PC32 2pcs，3m-long leads,E27 switch lampstand
Weight KG
Size 530mm*90mm*385mm



15W Small Portable Solar Generator

15W Small Portable Solar Generator

15W Small Portable Solar Generator
