Solar Water Pump

Quick Enquiry

Helical rotor submersible bore Solar pump, Max Flow Rate 1380 LPH, Max Head 165 m.
  • JS3 series
Fully Submersible 3" / 76mm diameter Helical rotor submersible bore Solar pump, The pump body and outlet are Stainless Steel. Max Flow Rate 1380 LPH, Max Head 165 m.
User Guide
Download Center

Motor filled with oil

Max Head:165m
Max Immersible depth:40m

APPLICATION AREA:
This project products are mainly used in dry region for irrigation of agricuture.
It can be used for drinking water and living water.
The living codition could be much improved.
It also can be used for fountains.

MATERIAL OF PARTS:
Outlet:Stainless steel
Pump body:stainless steel
Motor body:stainless steel
Screw:stainless steel
Bearing:NSK

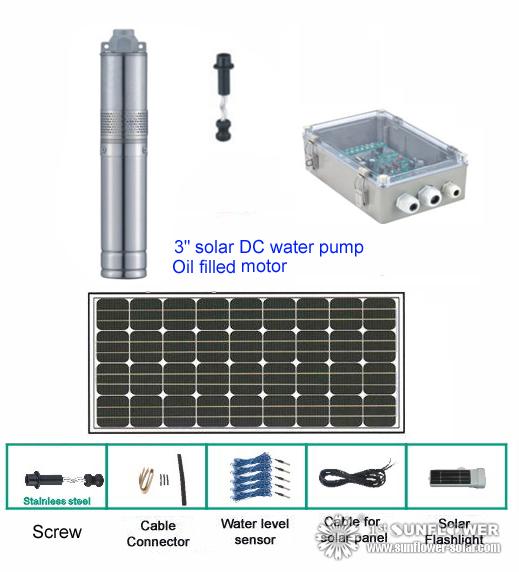

ACCESSORIES:
Pump controller, Screw, Cable connector, Water level sensor, Cabel for solar panel.

ADVANCED TECHNOLOGY
1.Application innovation
Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,
non-sensor motor.

2.Technics innovation
Adopt double plastic package for rotor and stator,
motor insulation≥300MΩ,
the motor security was much improved.

3.Structure innovation
Oil filling,convenient installation and environmental protection.


Pump Performance:

Type Voltage
(v)		 Power
(w)		 Max Flow Rate
LPH		 Max Head
(m)		 Outlet Size
(in)/(mm)		 Diameter
(mm)		 Controller Model
JS3-0.5-28 12 80 500 28 3/4" / 20mm 76 MAS3000-12
JS3-0.76-55 24 120 760 55 3/4" / 20mm 76 MAS3000-24
JS3-0.76-64 24 160 760 64 3/4" / 20mm 76 MAS3000-24
JS3-0.76-75 36 210 760 75 3/4" / 20mm 76 MAS3000-36
JS3-1.38-165 48 500 1380 165 3/4" / 20mm 76 MAS3000-48
