Fully Submersible 4inch-100mm diameter Centrifugal bore Solar pump.

Solar Water Pump

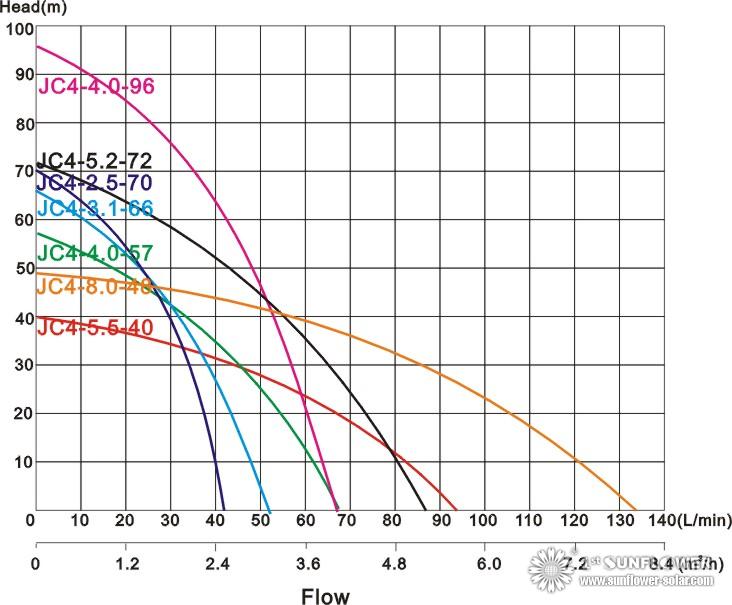

Fully Submersible 4" / 100mm diameter Centrifugal bore pump. The pump body and outlet are Stainless Steel. Max Flow Rate 8000 LPH, Max Head 96 m.

User Guide

Download Center

Motor filled with oil

Max Head:96m

Max Immersible depth:40m

APPLICATION AREA:

This project products are mainly used in dry region for irrigation of agricuture.

It can be used for drinking water and living water.

The living codition could be much improved.It also can be used for fountains.

MATERIAL OF PARTS:

Outlet:brass

Pump body:stainless steel

Motor body:stainless steel

Screw:stainless steel

Bearing:NSK

ACCESSORIES:

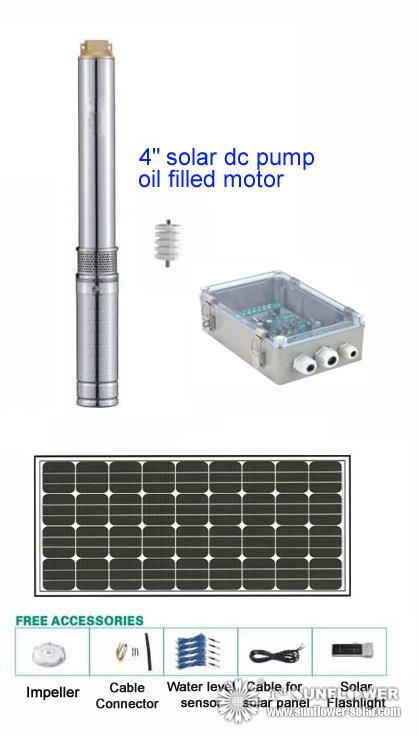

Pump controller, Impeller, Cable connector, Water level sensor, Cabel for solar panel.

ADVANCED TECHNOLOGY

1.Application innovation

Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,

non-sensor motor.

2.Technics innovation

Adopt double plastic package for rotor and stator,

motor insulation≥300MΩ,

the motor security was much improved.

3.Structure innovation

Oil filling,convenient installation and environmental protection.
