JWC4 series

This type Solar Water Pumps are mainly used in dry region for irrigation of agriculture. It can be used for drinking water and living water. MAX FLOW RATE 7.37m3/h, max head 100m.

User Guide

Download Center

PDF Catalogo

Features
Specifications
Schematic

Motor filled with WATER

Max Head:100m
Max Immersible depth:200m

APPLICATION AREA:

This project products are mainly used in dry region for irrigation of agricuture.

It can be used for drinking water and living water.

The living codition could be much improved.

It also can be used for fountains.

MATERIAL OF PARTS:

Outlet:brass

Pump body:stainless steel

Motor body:stainless steel

Screw:stainless steel

Bearing:NSK

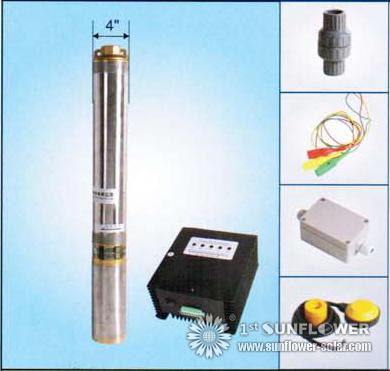

ACCESSORIES:

Pump controller, Impeller, Cable connector, Water level sensor, Cabel for solar panel.

ADVANCED TECHNOLOGY

1.Application innovation

Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,

non-sensor motor.

2.Technics innovation

Adopt double plastic package for rotor and stator,

motor insulation≥300MΩ,

the motor security was much improved.

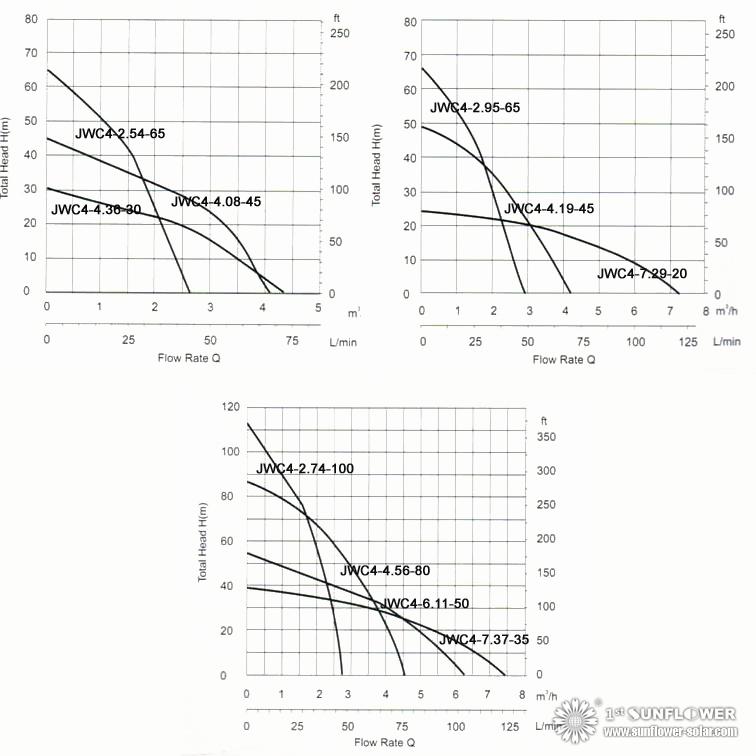

TYPE	VOLTAGE	POWER	MAX FLOW RATE	MAX HEAD	OUTLET SIZE	DIAMETER
TYPE	(v)	(w)	(m3/h)	m	(in)	(mm)
JWC4-4.36-30	48	550	4.36	30	1.5"	100
JWC4-4.08-45	48	550	4.08	45	1.25"	100
JWC4-2.54-65	48	550	2.54	65	1"	100
JWC4-7.29-20	60	600	7.29	20	1.5"	100
JWC4-4.19-45	60	600	4.19	45	1.25"	100
JWC4-2.95-65	60	600	2.95	65	1"	100
JWC4-7.37-35	110	1100	7.37	35	1.5"	100
JWC4-6.11-50	110	1100	6.11	50	1.5"	100
JWC4-4.56-80	110	1100	4.56	80	1.25"	100
JWC4-2.74-100	110	1100	2.74	100	1"	100
