Solar Centrifugal Pump Max Flow Rate 2200 LPH, MAX HEAD 35m.
  • JQB series
Centrifugal Pumps are used in dry region for irrigation of agriculture. It can also be used for drinking water, living water and fountains. Max Flow Rate 2200 LPH, MAX HEAD 35m.
User Guide
Download Center

APPLICATION AREA:

This project products are mainly used in dry region for irrigation of agricuture.
It can be used for drinking water and living water.
The living codition could be much improved.
It also can be used for fountains.

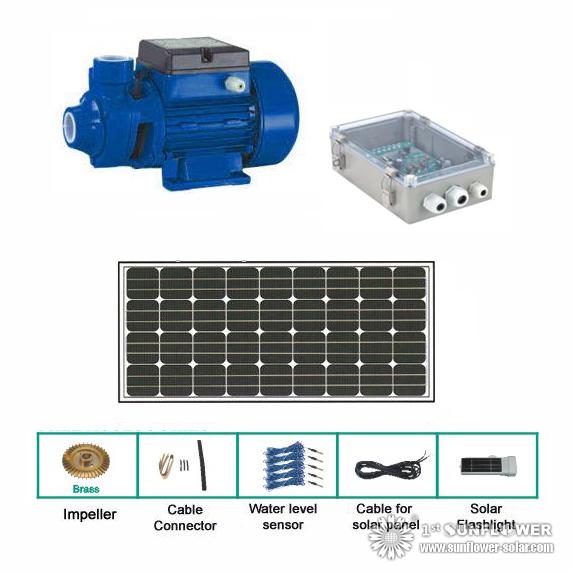

ACCESSORIES:
Pump controller, Screw, Cable connector, Water level sensor, Cabel for solar panel.

ADVANCED TECHNOLOGY
1.Application innovation

Compared with the traditional alternating current
machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,
non-sensor motor.

2.Technics innovation
High reliability and life expectancy
Cost-efficient pumping
5 years,manufacturer's warranty against defects in material and workmanship

Pump Performance:

Type Voltage
(v)
Power
(w)
Max Flow Rate
LPH
Max Head
M
Inlet/Outlet Size
(in)/(mm)
Controller Model
JQB-2.0-25 24 120 2000 25 1" x 1" / 25mm MAS3000-24
JQB-2.2-35 36 310 2200 35 1" x 1" / 25mm MAS3000-36
