Solar Water Pump MAX FLOW RATE 1.38 m3/h, MAX HEAD 45 m.

Solar Water Pump

Quick Enquiry

JWS3 series

This type solar water pump compared with the traditional alternating current machine, the efficiency is improved 25% by the permanent magnetism, direct current, brushless, non-sensor motor. MAX FLOW RATE 1.38 m3/h, MAX HEAD 45 m.

User Guide

Download Center

PDF Catalogue

Features
Specifications
Schematic

Motor filled with WATER

Max Head:45m

Max Immersible depth:200m

APPLICATION AREA:

This project products are mainly used in dry region for irrigation of agricuture.

It can be used for drinking water and living water.

The living codition could be much improved.

It also can be used for fountains.

MATERIAL OF PARTS:

Outlet:brass

Pump body:brass or stainless steel

Motor body:stainless steel

Screw:stainless steel

Bearing:NSK

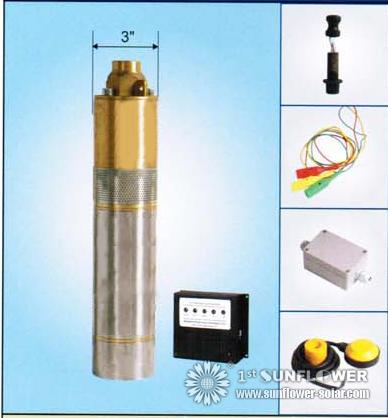

ACCESSORIES:

Pump controller, Screw, Cable connector, Water level sensor, Cabel for solar panel.

ADVANCED TECHNOLOGY

1.Application innovation

Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,

non-sensor motor.

2.Technics innovation

Adopt double plastic package for rotor and stator,

motor insulation≥300MΩ,

the motor security was much improved.

TYPE	VOLTAGE	POWER	MAX FLOW RATE	MAX HEAD	OUTLET SIZE	DIAMETER
TYPE	(v)	(w)	(m3/h)	m	(in)	(mm)
JWS3-0.76-30	24	135	0.76	30	3/4"	76
JWS3-1.38-45	36	240	1.38	45	3/4"	76
