Centrifugal submersible bore Solar pump, Max Flow Rate 5100 LPH, Max Head 98m.
  • JCS4 series

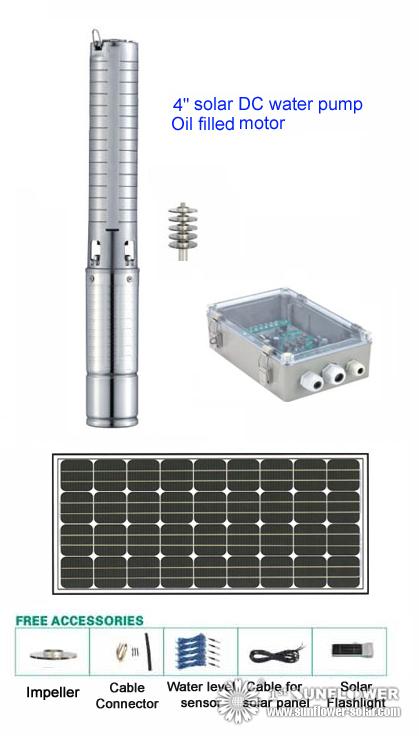

Fully Submersible 4" / 100mm diameter Centrifugal submersible bore pump. The pump body and outlet are Stainless Steel. Max Flow Rate 5100 LPH, Max Head 98 m.
User Guide
Download Center

Motor filled with oil

Max Head:98m
Max Immersible depth:40m

APPLICATION AREA:
This project products are mainly used in dry region for irrigation of agricuture.
It can be used for drinking water and living water.
The living codition could be much improved.It also can be used for fountains.

MATERIAL OF PARTS:
Outlet:stainless steel
Pump body:stainless steel
Motor body:stainless steel
Screw:stainless steel
Bearing:NSK

ACCESSORIES:
Pump controller, Impeller, Cable connector, Water level sensor, Cabel for solar panel.

ADVANCED TECHNOLOGY
1.Application innovation
Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,non-sensor motor.

2.Technics innovation
Adopt double plastic package for rotor and stator,
motor insulation≥300MΩ,
the motor security was much improved.

3.Structure innovation
Oil filling,convenient installation and environmental protection.

Pump Performance:

Type Voltage
(v)
Power
(w)
Max Flow Rate
LPH
Max Head
(m)
Outlet Size
(in) / (mm)
Diameter
(mm)
Controller Model
JCS4-3.6-32 36 300 3600 32 1.25" / 32mm 100 MAS3000-36
JCS4-3.8-54 48 500 3800 54 1.25" / 32mm 100 MAS3000-48
JCS4-6.5-36 48 500 6000 36 1.25" / 32mm 100 MAS3000-48
JCS4-3.8-98 110 1000 3800 98 1.25" / 32mm 100 MAS6000C
JCS4-5.1-76 110 1000 5100 76 1.25" / 32mm 100 MAS6000C
