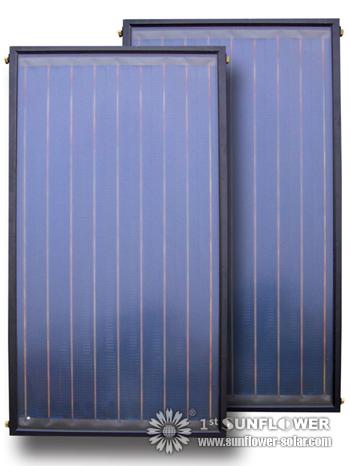

Flat-Plate Solar panel
Predominance: The pressure testing 9kgf/cm2 ; Ultrasonic strip welding technology; Not change the character of materials; The coefficient of heat conductivity is unchanged;
User Guide
Download Center

Flat Plate Solar Collector Prices



Predominance: The pressure testing 9kgf/cm2 ; Ultrasonic strip welding technology; Not change the character of materials; The coefficient of heat conductivity is unchanged;



Flat Plate Solar Collector Components:



1. Frame: Alunimum Alloy,
2. Board Inner Core: Purple Copper
3. Layer: Plating Black Chrome (Absorptance 95%, Emittance 10%)
4. Cover Board: 4mm Toughened Glass
5. Heat Conservation: Rock Cotton (Back), Polythene (Side);
6. Back Board: 0.5mm Galvanized Board

1- Ordinary TXT coating: Absorptance 93%, Emittance 45%~50%;
2- Plating Chrome plating coating: Absorptance 95%~96%, Emittance 10%;
3- TINOX (Germany) coating: Absorptance 96%, Emittance 6%.

Flat Plate Solar Collector Scope of Application:

It suit for the climate where are very hot, it will reach the best efficiency when use it near to the equator.


Notice:

1. The angle of the frame can be changed in the production as the virtual geographical condition of the customers. We can design the suitable angle for the
customers.
2. We offer the spare accessories and tubes for your order for free.
3. We can offer the different material of water tank , frame , and tubes according to your request.
Flat Plate Solar Collector Split Home system
