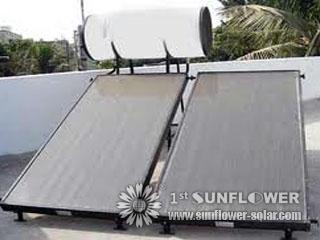

Flat-plate Solar Water Heater
  • Flat-plate Solar Water Heater
  • Flat-plate Solar Water Heater
  • Flat-plate Solar Water Heater
Compact Flat-plate solar heating system
Stainless steel inner tank, pressurized system integrated with P/T valve, air suction valve, check valve etc and with optional accessories immersion heater, controller, magnesium rod. Let SFF consider more for you!
User Guide
Download Center

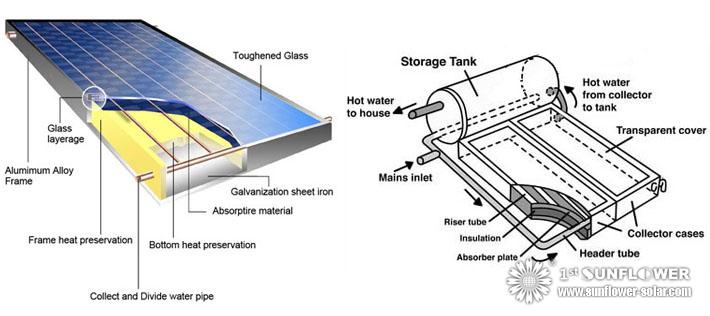

Flat-Plate Collector Components:

1. Frame: Colored Alunimum Alloy, thickness 1.2mm
2. Board Inner Core: Purple Copper
3. Layer: blue titanium coating
(Absorptance 95%, Emittance 10%)
4. Cover Board: 4mm Toughened Glass
5. Heat Conservation:
Rock Cotton (Back), Polythene (Side);
6. Back Board: 0.5mm Galvanized Board


Solar water heater Features:

1) Superior heat preservation ensured by 55mm polyurethane foam insulation layer
2) Designing the immersion heater hole in advance for the cloudy, snowy, and rainy days
3) Suitable for mains pressure water (up to 0.6MPa, 87psi)
4) Immersion heater connects with SFF water tank
5) Material: galvanized sheet
6) Inner tank material: using pressurized material, the inner tank has the advantages as follows:
a) No corrosion: can prevent corrosion lead from chlorine ion, sea water, salt water or buck water
b) No leakage: applied for special anti-corrosion layer
c) Sanitary water: the qualities showed above make it possible that water quality is pure and no twice pollution
7) Able to be used in all climates
8) Automatic water supply, could supply water self-acting without any other installation and could able to be pressured.


Scope of Application:

It suit for the climate where are very hot, it will reach the best efficiency when use it near to the equator.


Notice:

1. The angle of the frame can be changed in the production as the virtual geographical condition of the customers. We can design the suitable angle for the
customers.
2. We offer the spare accessories and tubes for your order for free.
3. We can offer the different material of water tank , frame , and tubes according to your request.
